Finger Spray/ One Drop Pump / Nasal Spray/ Mini Finger Spray/ Long Nozzle Spray

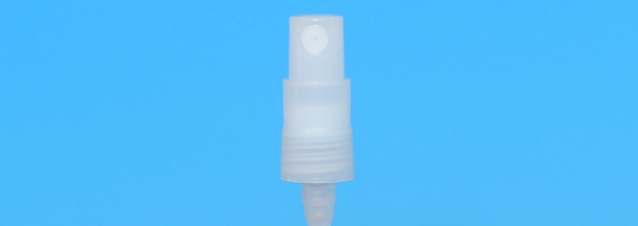

High Quality Fine Mist Spray Pump Head

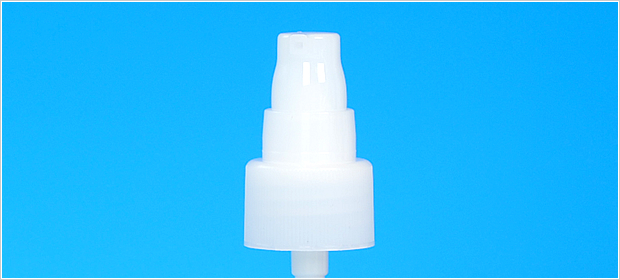

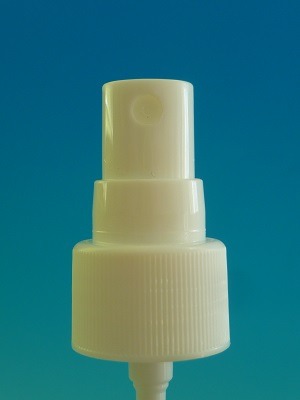

φ20 Fine Mist Finger Spray Head Knurled KFS100-20 (picture on the left: with overcap)
φ24 Fine Mist Finger Spray Head Knurled KFS100-24 (picture on the left: with overcap)

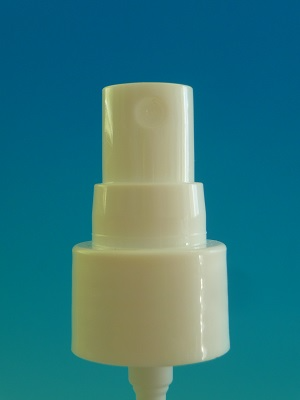

*[exit knurling]/[no knurling] possible choice
Features
- Fine Mist through accumulation system
Accumulator type is adopted in the pump system.Clean mist enables discharge with no potassium drops. - Head design that fits the finger
We have adopted a head design that fits the shape of your finger. The pressing pressure is lighter as compared to other products and together it Together it achieve`s a sense of light use. - Primary Use
Cosmetics* Daily goods (Perfumes, lotions, hair sprays, hair, deodorant) Sundry household (Glass cleaner, furniture cleaners, waxes, cleaners for home appliances, gardening pesticide, plants polish, disinfectant, insecticide) Industrial goods (automobiles (frost), and others)
Specification table
| Material | PP,HDPE,LDPE,POM,High Sheet,SUS |
|---|---|
| Mechanism | accumulation system |
| Dosage | 0.1cc |
| No. of pieces | 1,000 pieces |
| Recommended bottle mouth size |
 |

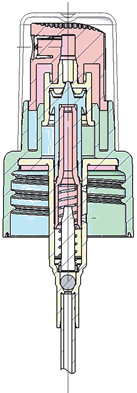

Components
| No. | component | material | color |
|---|---|---|---|
| 1 | Dust Cap | PP | Natural* |
| 2 | Insert | POM | Natural |
| 3 | Cylinder | HDPE | Natural |
| 4 | Screw cap | PP | Natural* |
| 5 | Spring guide | PP | Natural |
| 6 | Housing | PP | Natural |
| 7 | accumulator | HDPE | Natural* |
| 8 | L piston | LLDPE | Natural |
| 9 | S Piston | LDPE | Natural |
| 10 | Gasket | High sheet | White |
| 11 | Spring | SUS | - |
| 12 | Ball | SUS | - |
| 13 | Dip Tube | LDPE | Natural |
* Color can be ordered separately for these components
[outline]

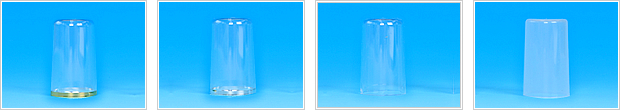

Support Caps ( for finger spray / one drop pump)
Can be put on as over cap
Features
- Head design that fits the finger
Head design is adopted to fit the shape of the finger. Achieve`s a sense of light use - Primary use
Cosmetics*Goods daily (perfumes, lotions, creams, lotions, sunblock, hair sprays, hair, deodorant), sundry household (glass cleaner, cleaning furniture, wax, cleaners for home appliances, gardening pesticide, tolerance plant polish, disinfectant, insecticide), industrial goods (automobiles (frost), and others)
Specification table
| Material | PP,HDPE,LDPE,High Sheet,SUS |
|---|---|
| Mechanism | accumulation system |
| Dosage | 0.1cc |
| No. of pieces | 1,000 pieces |
| Recommended bottle mouth size |
 |

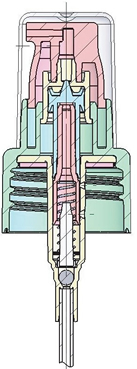

Components
| No. | component | material | color |
|---|---|---|---|
| 1 | dust cap | PP | Natural* |
| 2 | acuator | HDPE | Natural* |
| 3 | cylinder | HDPE | Natural |
| 4 | screw cap | PP | Natural* |
| 5 | spring guide | PP | Natural |
| 6 | housing | PP | Natural |
| 7 | L-piston | LLDPE | Natural |
| 8 | S-piston | LDPE | Natural |
| 9 | gasket | high sheet | White |
| 10 | spring | SUS | - |
| 11 | ball | SUS | - |
| 12 | dip tube | LDPE | Natural |
* Color can be ordered separately for these components
[outline]
Support Caps ( for finger spray / one drop pump)
Can be put on as over cap

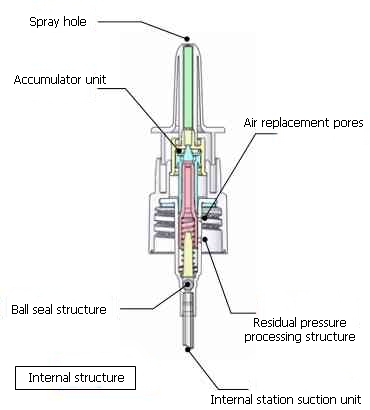

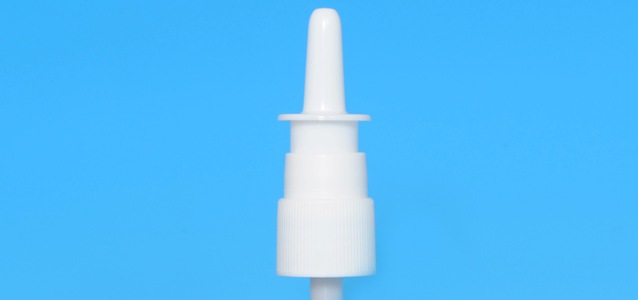

Nasal spray under Accumulation system for medicinal use
Features
- Pumps for pharmaceuticals (nasal spray)
in the spray with accumulation system, to have an effective nasal we have Developed a nasal spray that discharges fine mist. - Head design that fits the finger
To be able to push down the circular spout positively , The direction of the nozzle Held tightly. It goes to the nasal tip smoothly and in a friendly way. For clinics, it is the optimum shape for OTC. - Just Fit Pump Engine
In the engine structure of the Finger Spray "KFS100-02" , with only 1 push only there is a continuous discharge and a stable spray volume. A good spray angle has also been achieved. We have achived more than 16μm particle size required for nasal use. - User Safety
For Increased safety during use Built-in inserted spout. - Supports Pharmaceutical products
It is manufactured in our Domestic (Nabari) plant in a version 1 clean room of the plant.
Specification table
| material | PP,HDPE,LLDPE,LDPE,SUS |
|---|---|
| Mechanism | accumulation system |
| Dosage | 0.1cc |
| No. of pieces | 1,000 pieces |
| Recommended bottle mouth size |
 |
Components
| No. | component | material | color |
|---|---|---|---|
| 1 | cover nozzle | PP | White |
| 2 | Shaft | HDPE | Natural |
| 3 | Cylinder | PP | White |
| 4 | L-Piston | LLDPE | Natural |
| 5 | S-Piston | LDPE | Natural |
| 6 | Screw Cap | PP | White |
| 7 | Housing | PP | Natural |
| 8 | Spring guide | PP | Natural |
| 9 | Ball | SUS | - |
| 10 | Spring | SUS | - |
| 11 | Gasket | LLDPE | Blue |
| 12 | Dip tube | LDPE | Natural |
[outline]
Ideal for portable products! Ultra-compact Mini Finger Spray
Features
- Mobile Ultra-compact mist spray
The Accumulation of a minimum spray volume formula releases the mist spray. Similarly as KFS100, it Emits a fine mist in the accumulation mode.Applications: pharmaceutical Products, Cosmetics,Household goods, etc. Particularly for products that are portable. - Perfect Fit Design
An ultra small design that fits in your hand, it is small but your hand feels the sense of direction. It instantly emits the mist and fits the finger tip, it is easy to push down as well. - Easy on ecology and competitive cost
The pump is made with a minimum number of components which makes it Light and Small and by using environmentally friendly materials which is easy on the Ecology. We believe in Resource conservation and competitive cost performance - Supports Pharmaceutical products
It is manufactured in our Domestic (Nabari) plant in a version 1 clean room of the plant.
Specification table
| material | PP,HDPE,LDPE,SUS,POM,NBR,High sheet |
|---|---|
| Mechanism | accumulation system |
| Dosage | 0.035cc |
| No. of pieces | 3,000 pieces |
| Recommended bottle mouth size |
 |
Components
| No. | component | material | color |
|---|---|---|---|
| 1 | Acuator | HDPE | Natural |
| 2 | insert | POM | Natural |
| 3 | Piston shaft | PP | Natural |
| 4 | Screw Cap | PP | Natural |
| 5 | Housing | HDPE | Natural |
| 6 | Dust Cap | PP | Natural |
| 7 | Piston | NBR | Black |
| 8 | Ball | SUS | - |
| 9 | Spring | SUS | - |
| 10 | Gasket | High Sheet | Blue |
| 11 | Dip tube | LDPE | Natural |
[outline]

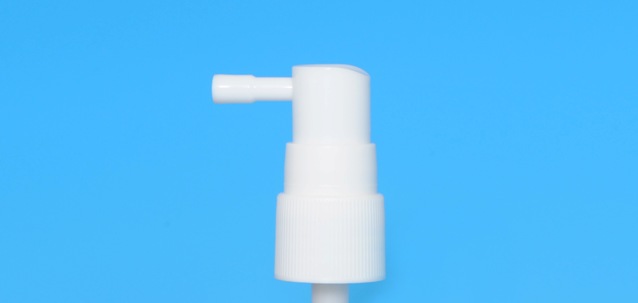

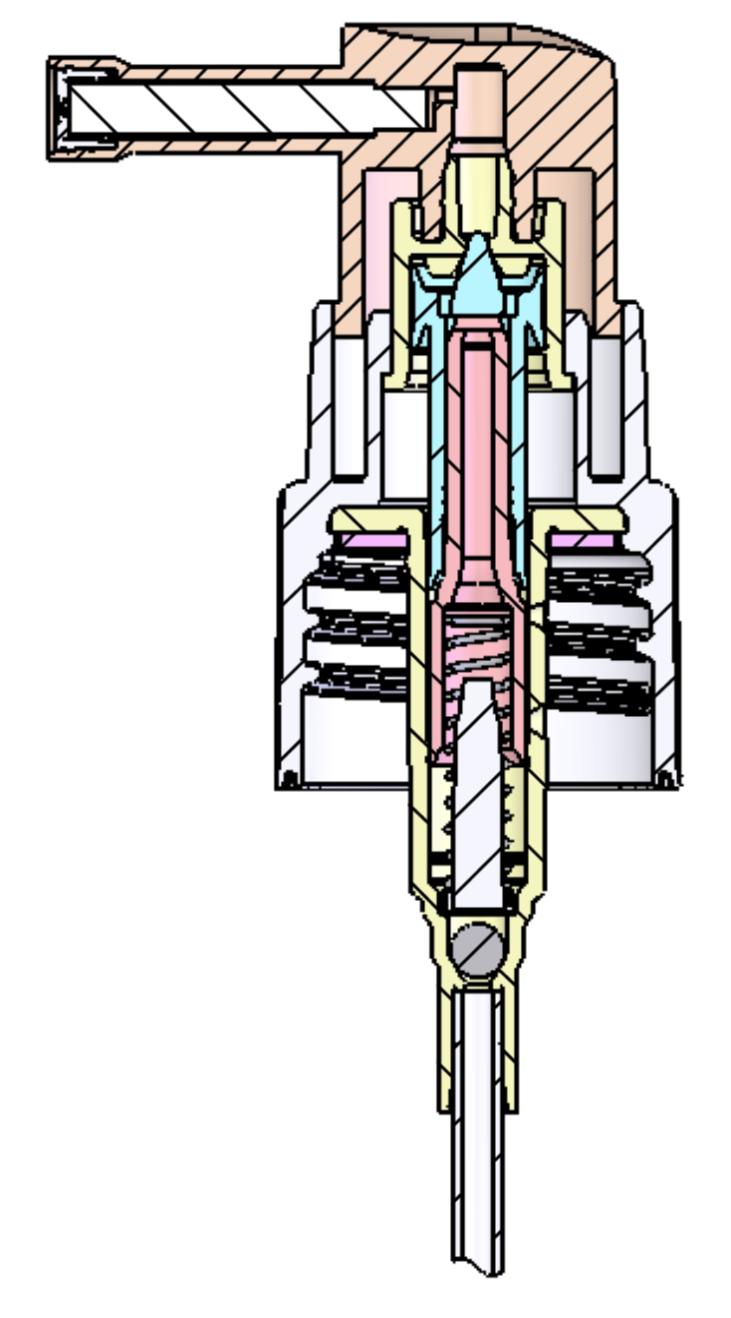

Accumulative system Long nozzle spray
Features
- Suitable for spraying with depth to the points such as throat, hair scalp etc. can be used in pharmaceutical products as well.
- Can be used in pharmaceutical products
It is manufactured in our Domestic (Nabari) plant in a version 1 clean room of the plant.
Specification table
| material | POM,PP,HDPE,LDPE,SUS |
|---|---|
| Mechanism | accumulation system |
| Dosage | 0.1cc |
| No. of pieces | 1,000 pieces |
| Recommended bottle mouth size |
|
components
| No. | component | material | color |
|---|---|---|---|
| 1 | Insert | POM | Natural |
| 2 | Shaft | PP | Natural |
| 3 | Cylinder | HDPE | Natural |
| 4 | Screw Cap | PP | Natural/White |
| 5 | Spring guide | PP | Natural |
| 6 | Housing | PP | Natural |
| 7 | Actuators | HDPE | Natural/White |
| 8 | L-piston | HDPE | Natural |
| 9 | S-piston | LDPE | Natural |
| 10 | Gasket | LDPE | Blue |
| 11 | Spring | SUS | - |
| 12 | Ball | SUS | - |
| 13 | Dip tube | LDPE | Natural |
[outline]
