top page > CONCEPT > Handy Foam Pump/Pump Foam

Pump Foam / Handy Foam Pump

A fine grained, high-quality foam with a sense of volume

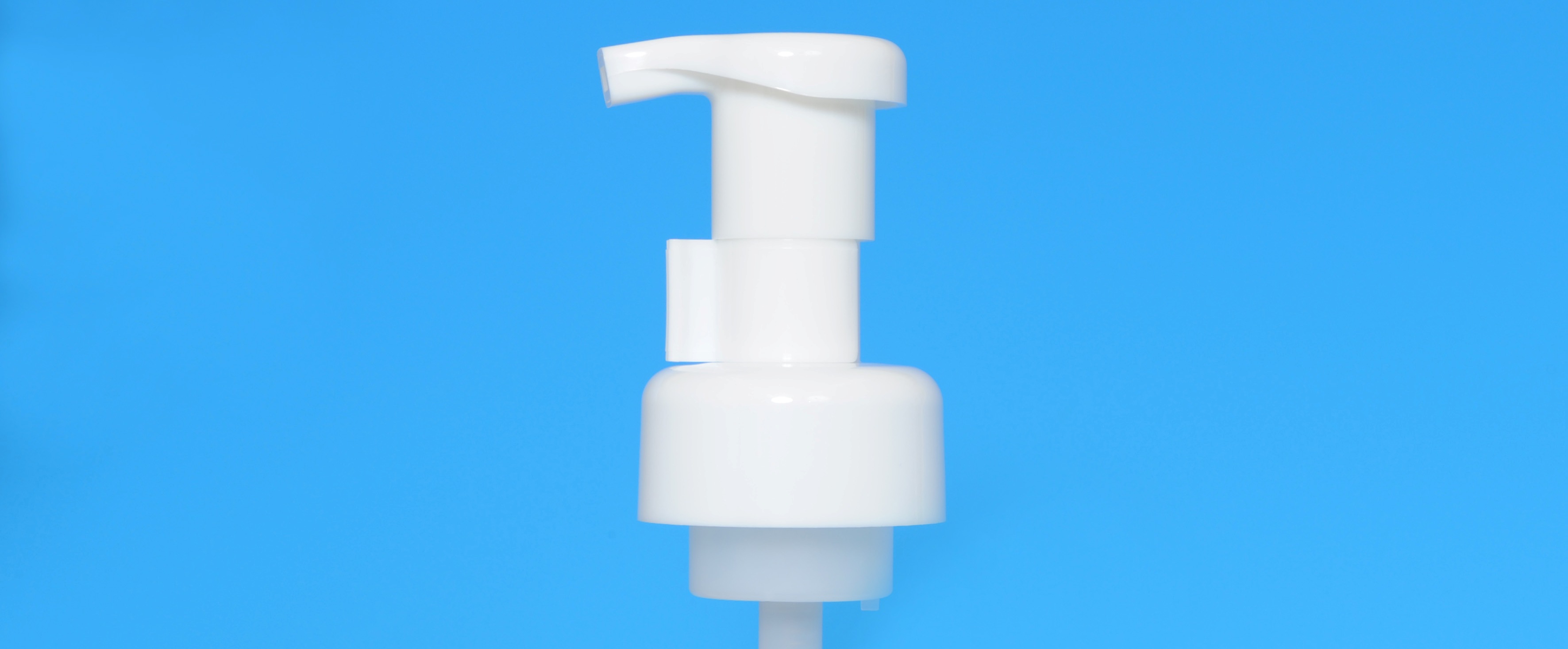

Handy Foam Pump

Features

  1. A fine grained, high-quality foam with a sense of volume
    Feature of the company is the effect of"Porous body". Due to the combination of mesh and "porous body" it is Difficult to clogg. and as a result it gives a fine texture, marshmallow foam to achieve a sense of volume.
  2. A stationary head for an easy and light press.
    Somewhat smallish flat top surface, for an Easy press during the use with the palm of your hand . Helps you get a feel of using.
  3. From a request for a small lot to the request of the appearance ,
    We can answer your wish. It is possible to answer various demands such as appearances of stationary type ,color variations, etc.
  4. Challenging Cost and Preserving Ecology
    We are using environmentally friendly materials like olefins for achieving cost competitiveness and ECOLOGY and shorter lead time. In addition, the product weight is about 29.5g compared to others ours is lighter and results in Success in cost reduction.

Specification Table

material PP,HDPE,LDPE,LLDPE,High Sheet,SUS,CFS,PET
Mechanism Direct Pressure
Dosage 0.9cc
No. of pieces 200 pieces

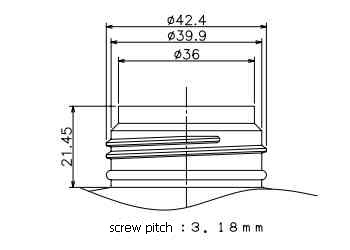

Recommended
bottle mouth size

Components

No. component material color
1 Ejector Head PP White*
2 Container Cap PP White*
3 Stopper PP White*
4 T Holder PP Natural
5 Accumulator PP Natural
6 A Piston Shaft HDPE Natural
7 Air valve LDPE Natural
8 L piston LLDPE Natural
9 L Shaft PP Natural
10 Valve Shaft HDPE Natural
11 Mesh holder PP Natural
12 Porous body CFS Yellow
13 Mesh(#80)* PET Natural
14 Gasket High Sheet -
15 Ball 1 SUS -
16 Ball 2 SUS -
17 Spring SUS -
18 Dip tube LDPE Natural

* Color can be ordered separately for these components.

In the mesh *180 can also be changed as per customers request

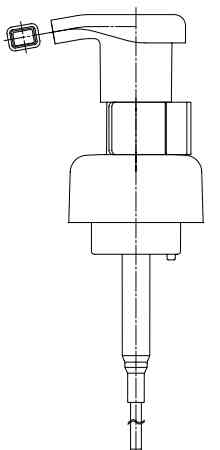

[outline]

outline

Adopted a porous body (Have already finished applying for patent in 6 other countries.)

Adopted a porous body (Have already finished applying for patent in 6 other countries. A new improved foam pump With a More creamy foam quality And Combining new features , it helps meet the needs of the customer

L-HEAD

Specifications

  1. Mesh + Porous body Adopted
    Due to the combination of mesh and a porous body, it is Less affected by low temperature environment and fluid
  2. Water Infiltration prevention type
    Worry is eliminated about Liquid contents is invaded by bacteria and can be used safely around water.
  3. Greater effective capacity
    Due to the High position of the mouth by air displacement,The Effective capacity becomes greater.
  4. Primary use
    daily miscellaneous goods, cosmetics

Specification Table

Material PP,LLDPE,LDPE,PE,HDPE,CFS6mm,SUS,HighSheet
Mechanism Direct Pressure
Dosage 1cc
No. of pieces 200 pieces
Recommended
bottle mouth size 		Recommended bottle mouth size
Bottles that best matches with our products is here >> List of bottles

Components

No. component material color
1 Ejector Head * PP White*/others
2 T holder * PP White*/others
3 Upper Cap * PP White*/others
4 Container Cap * PP White*/others
5 Accumulator PP Natural
6 A Piston LLDPE White*/others
7 A shaft PP Natural
8 A valve LLDPE Natural
9 L piston LLDPE Natural
10 L Shaft PP Natural
11 Valve shaft HDPE Natural
12 Porous Body

PF-03:

CFS 6mm

PF-04:

CFS 3mm

 Natural
13 Gasket High Sheet coloring
14 Ball 1 SUS 304
15 Ball 2 SUS 304
16 Spring SUS 304
17 Dip Tube LDPE Natural

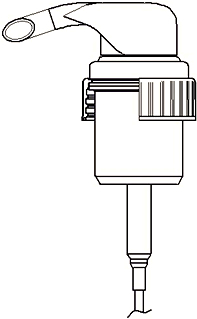

[outline]

outline
